Options

If you want to change the setting of the F70W/TabCam (WirelessCam) , you can follow the following steps.

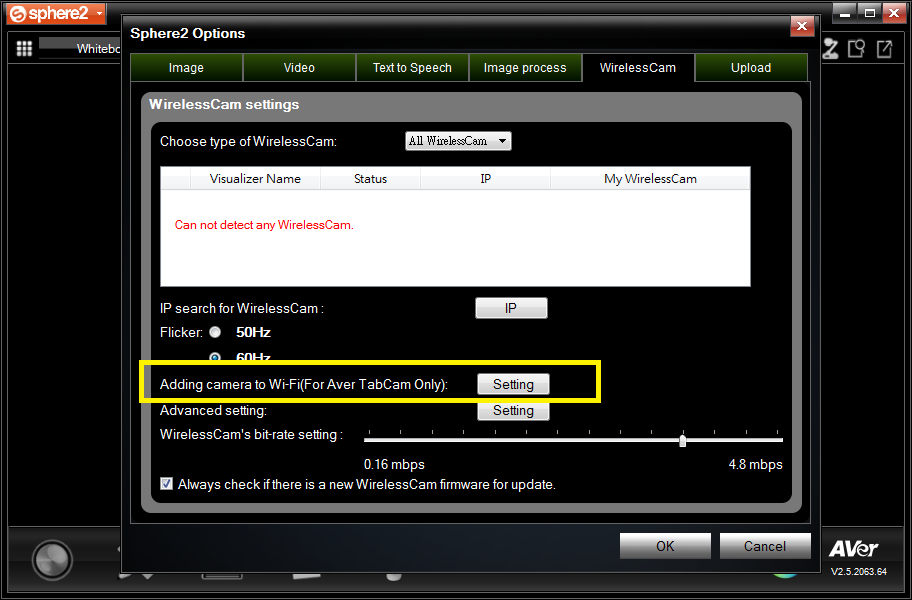

Press the Adding TabCam to Wi-Fi network’s button.
Enter your Wi-Fi information as shown in follow picture.
On the next page, place the TabCam as shown in follow picture.

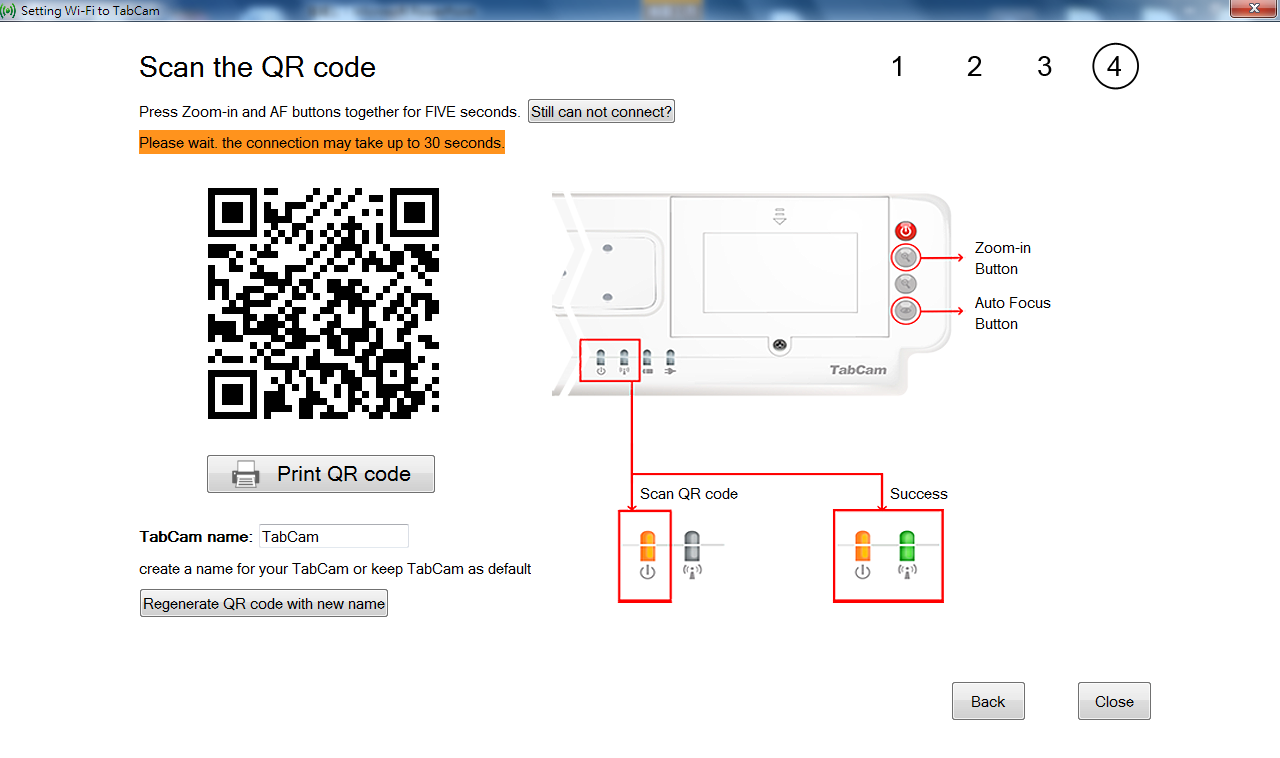

On the “Scan the QR Code” page, press the Zoom-in and Autofocus buttons together for five seconds, then release. *Wait approximately 20-30 seconds for scanning to complete.

Press the the Advanced setting’s button.

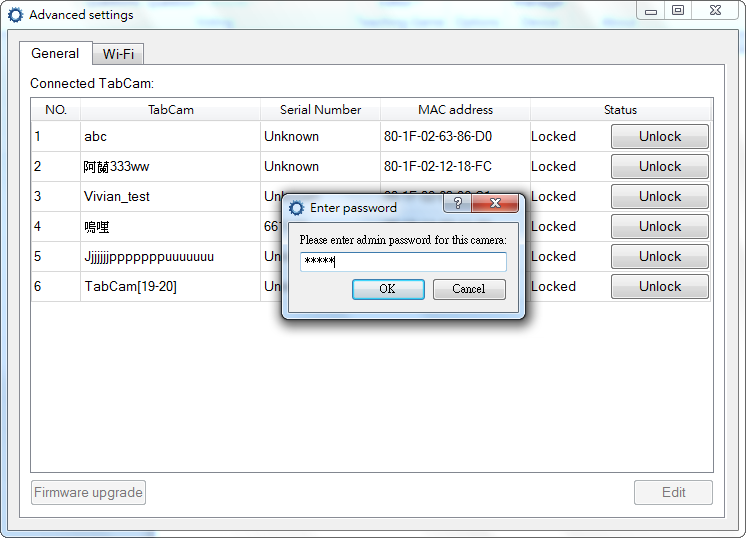

Select your TabCam which you want to upgrade and press the Unlock button to key in the password for getting permission.(Our initial password is “admin”)
If you key in the correct password (that TabCam’s Status will change from Locked to Free) , our server will check your firmware version automatically. And then please press “Yes” for downloading the latest firmware version.

After you download the latest firmware version, now you are allowed to press Firmware upgrade button.

Now you start to update your TabCam’s Firmware. If you do not update successfully, you can reopen your TabCam and try again.

The pens are already bound by default from the factory. To check, run A+ Plug-in for PowerPoint and in AVer ribbon, click Settings > Student device. Pick up and make sure all the student pens are awake. Wait for about 3 seconds. In the table, the student pen signal indicator shows which pens are successfully bonded.

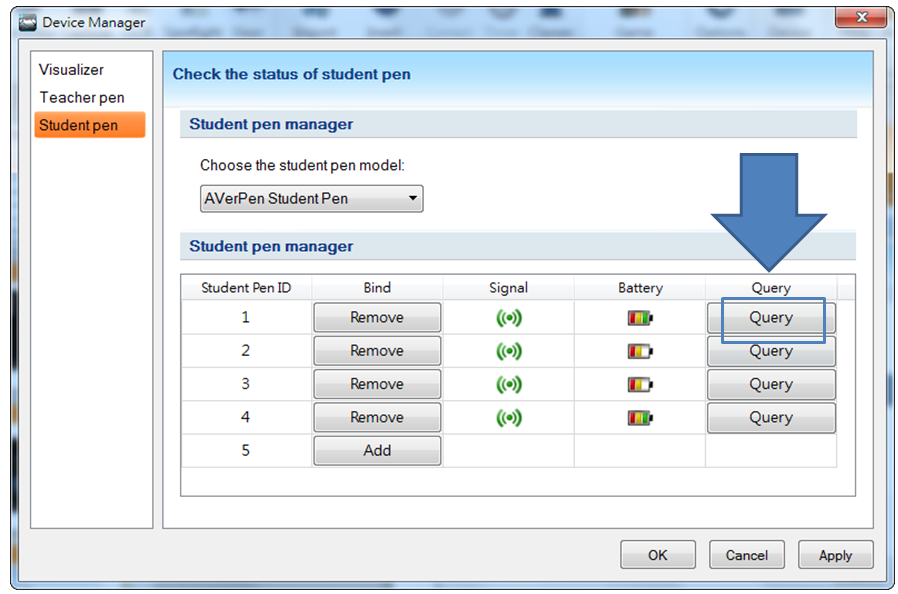

To identify the pen ID with the student pen, press query. The pen button will light up. Use the supplied sticker and mark the pen ID. Then stick it at the back of student pen. Do this step for all the student pens until you have identified them all.

WirelessCam Setting
